CV7-BARO
Wind and weather sensors Ref : LC-CV7-BARO-12VUltrasound anemometer
PRICE : NCDescription

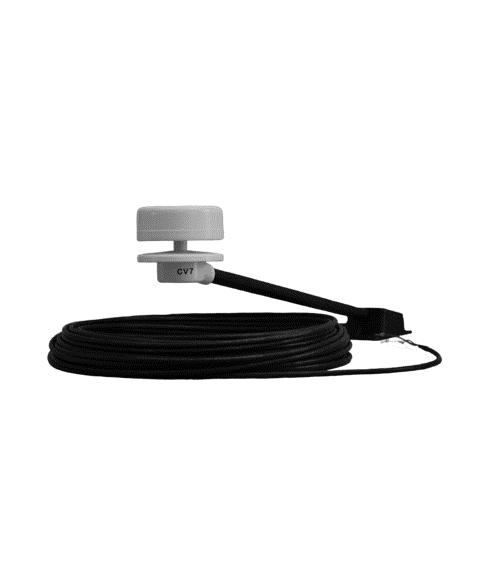

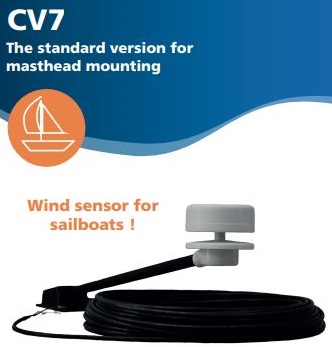

CV7 is an ultrasound anemometer weather vane with barometer sensor
CV7 is an ultrasound anemometer weather vane with barometer sensor with different strengths such as :
• Robust
• No ageing
• Insensible to the gyroscopic effect
• Sensibility stability to light winds
• Minimum of resistance
• Compensation of inclination due to wind
Product advantages
The CV7 is an ultrasound anemometer weather vane with barometer sensor, its an evolution of the well known CV3F ultrasonic wind sensor. Lighter, more compact and less energy consumption, this model is configurable and particularly well suited to sailboats. This sensor can be used connected to a PC and any system featuring an NMEA® input port and specific pieces of equipment using conventional formats. In PC mode, this bidirectional sensor can be set up for angle correction, damping, units of measure and interface formats. All product are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.
Features
In the box
1 X CV7 with barometer sensor with oblic mast
1 X Mounting bracket
1 X 25 m cable 4X 0,22mm²
1 X Installation and operation manual
1 X 2 years guaranty parts and labour at our premises

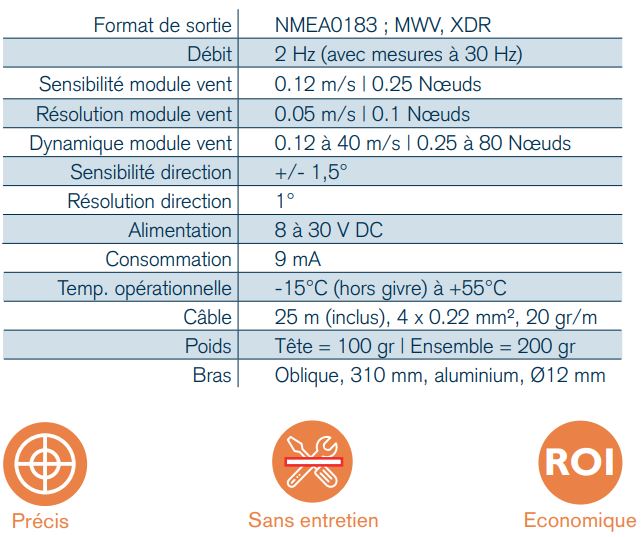

Technical characteristics
Applications : Sailboats
Barometer : YES
Bracket : Oblique
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 12 V
Wind module sensitivity : 0.25 Nd
