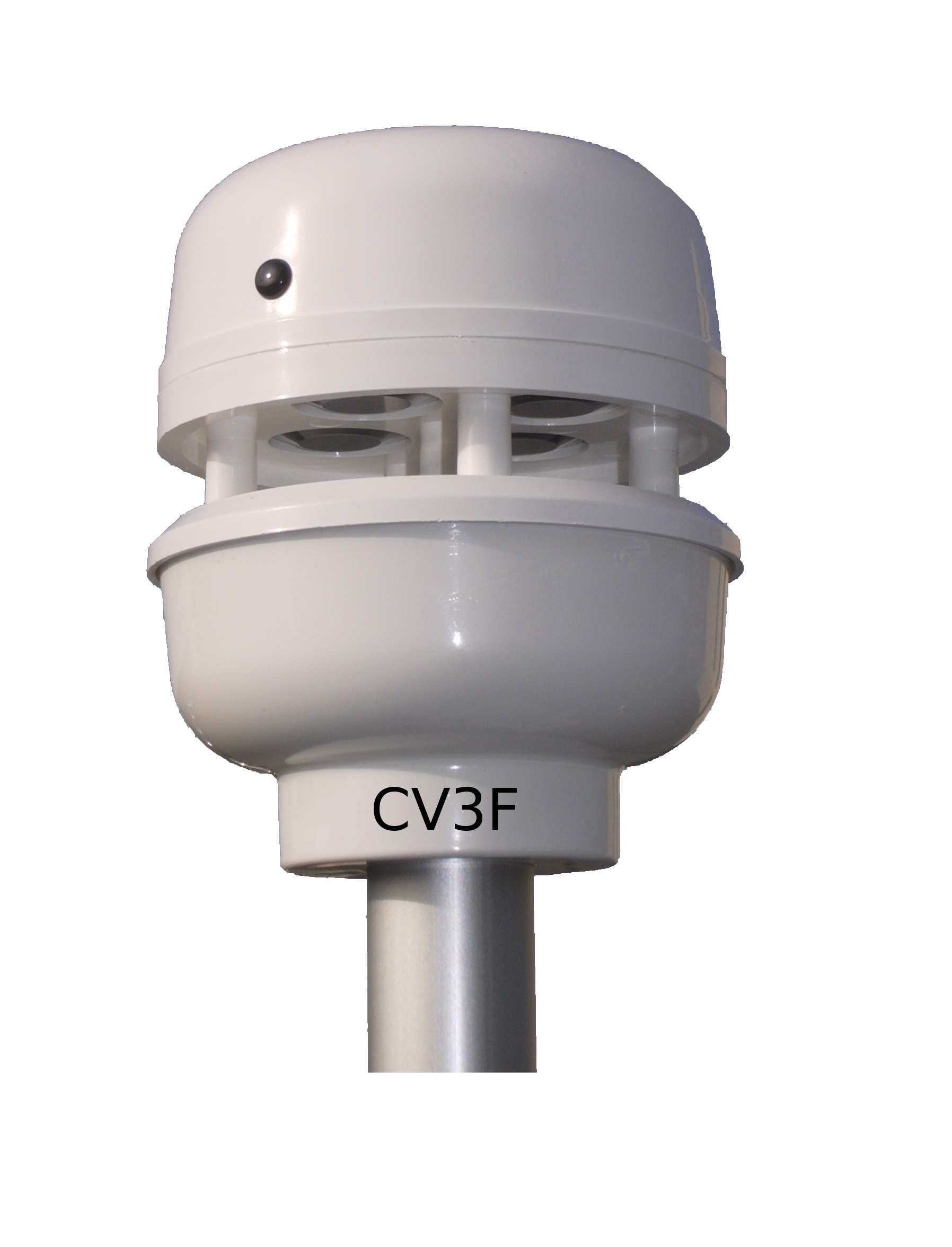

CV3F

Wind and weather sensors Ref : LC-CV3F

Ultrasound anemometer 12V, the reference for workboats !

PRICE : NC

Find a dealer

Description

The reference for workboats

CV3F* is the sensor that built LCJ Capteurs reputation in 1999 and is used worldwide due to its robustness and reliability in difficult climatic conditions. It is specifically designed for “all-weather” working boats.

The CV3F is an wind sensor 12V

The CV3F is an 12V wind sensor, its a wind measurement sensor providing, on a standardised series electric line, the values from the wind module in knots or metres per second, relative wind direction and its temperature in degrees C. The sensor can be used directly with a PC type computer or read by repeaters with a standard NMEA0183 input.

Product advantages

CV3F is the perfect wind sensor for work-boats.Since its introduction to the market in 2001, thousands of crews sailing everywhere in the world are using wind data provided by this sensor.
It is a must have piece of equipment for coast guards, life-boats, professional fishermen, cargo ships, passengers boats and many other boats where wind data is constantly required.
This CV3F 12V wind sensor can be plugged in to any navigation equipment or software application featuring an NMEA® input port.
All product are designed and manufactured in the Nantes region in France where they are fully tested throughout the manufacturing process.

Features

In the box

1 X CV3F wind sensor 12V with vertical arm 31 cm
2 X Stainless steel mounting brackets
1 X 25m RG58 C/U coaxial cable
1 X Installation and operation manual
1 X 2 years guaranty parts and labour at our premises

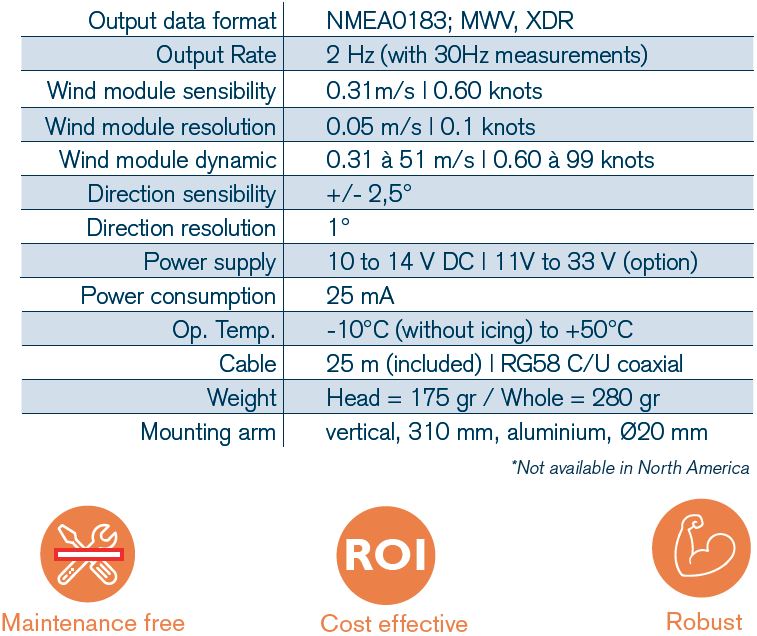

Technical characteristics

Applications : Motorboats
Barometer : NO
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.5-99 Nds
NMEA0183 : 1
Sensitivity of direction : ±2 °
Type : Ultrasonic
Weight : 0.275 Kg
Power input : 12 V
Wind module sensitivity : 0.5 Nd

Parts and accessories

Option

LC-ADAPT-1	SUPPORT FIXATION DIAM20MM POUR ADAPT. CV3F SUR ROTULE	NC
LC-STATFIXBARO	LOGICIEL STATFIXBARO CAPITAINERIE ET SEMAPHORE	NC
BAROPLUG	BAROMETER NMEA2000 - PLUG AND PLAY	NC
WINDYPLUG	WindyPlug NMEA2000 interface for Wind Sensors, smaller, cheaper with embedded barometer.	NC

Downloads

CV3F FRENCH (35.3 Ko)
