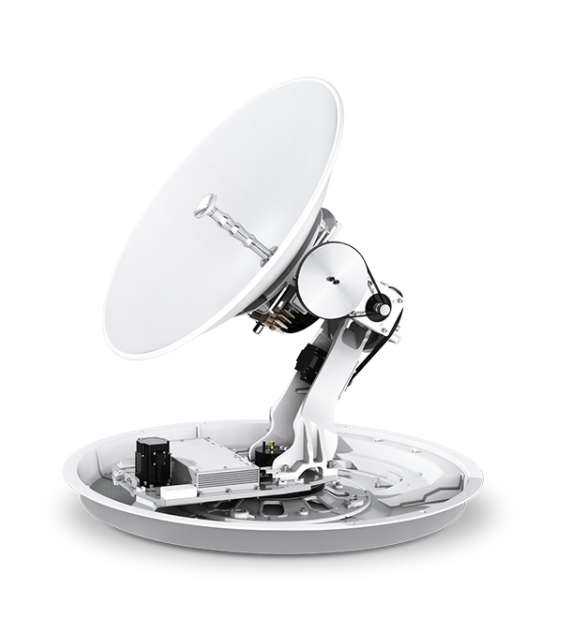

v60e_antenna-side_2_final_2020-07-27_600

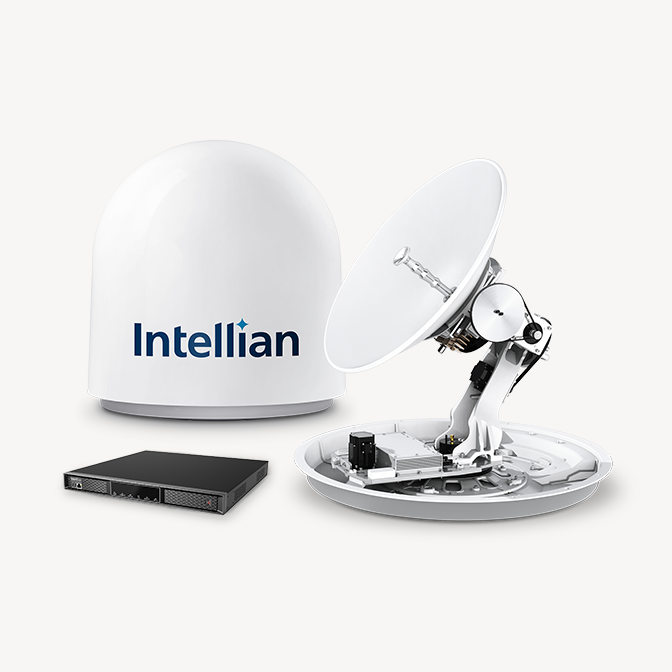

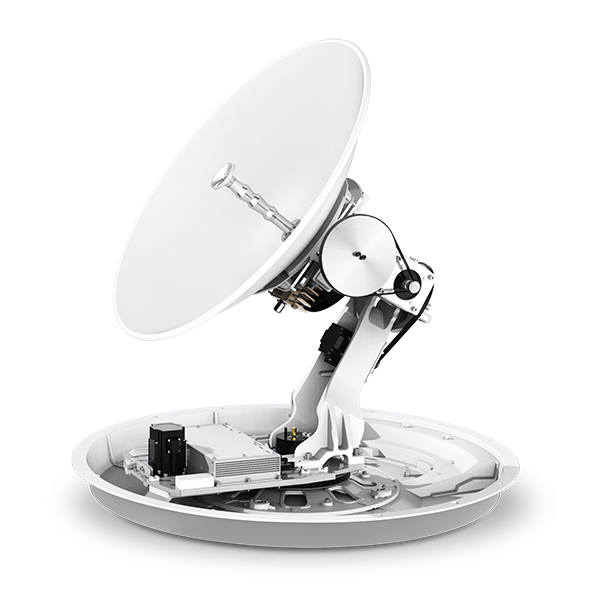

V60E

VSAT Ref : IT-VE-60-E1YN

65cm Ku-band Maritime VSAT Antenna System

PRICE : NC


Description

SUPERIOR RF PERFORMANCE

The v60E is a lightweight and affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 65cm class. The v60E's RF design delivers higher levels of performance, with a standard 6W BUC and Cross-pol only configuration, at significantly reduced pricing, providing customers with lower budget access to the quality and reliability of an Intellian product.

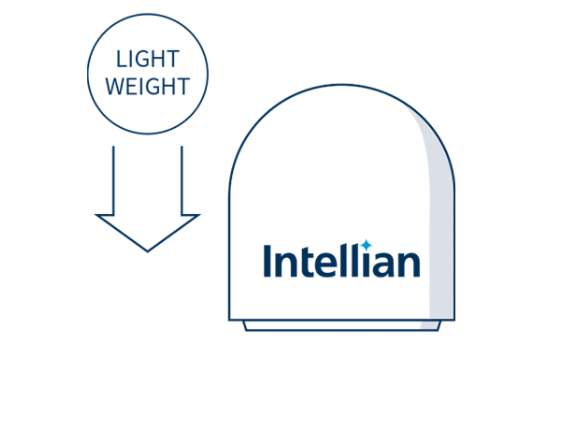

Compact and Lightweight

Reduces freight and installation costs thereby lowering the total cost of ownership.
  • Ideal for smaller vessels which have limited space for a larger system
  • Compact package reduces freight and deployment costs
  • Overall lower total cost of ownership

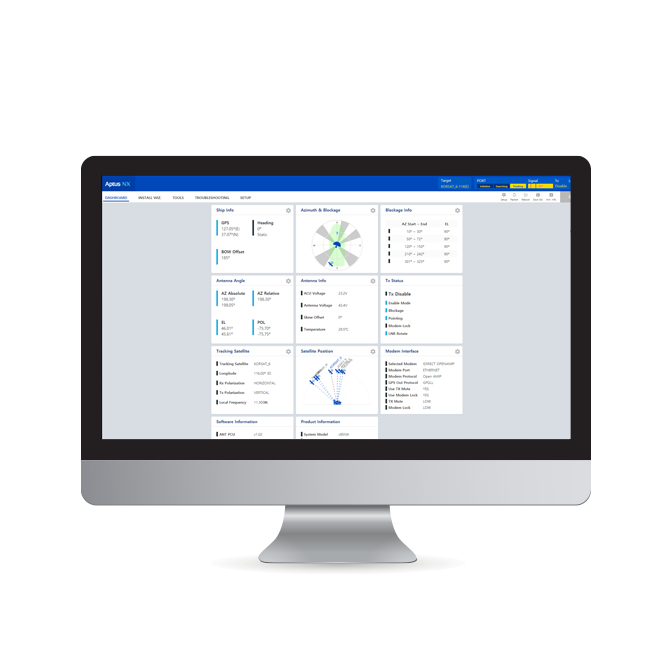

Antenna Management Platform

Intellian's integrated Aptus platform, provides a responsive web user interface to manage and control the antenna system.

Intelsat Flex Certified

The v60E ensures access to high-throughput satellite networks.

Quick and Easy Installation

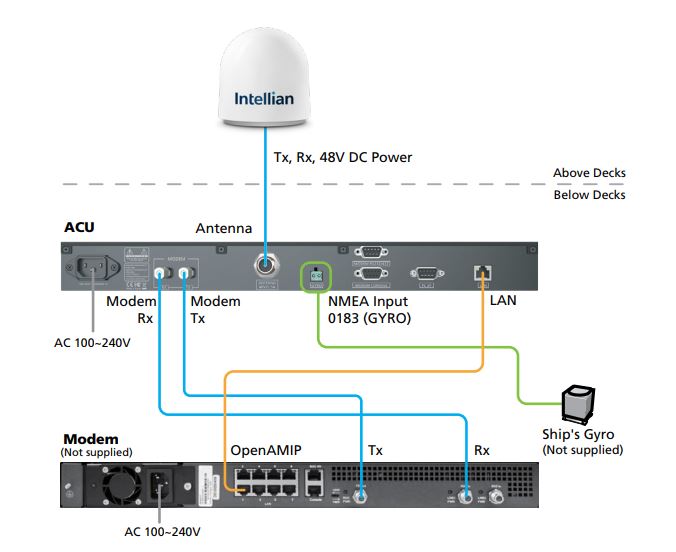

  • Single Cable connection

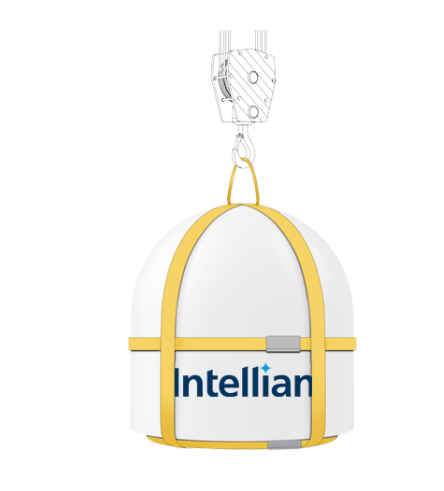

  • Pre-slung lifting straps
  • Aptus step by step installation wizard to guide easy installation

Features

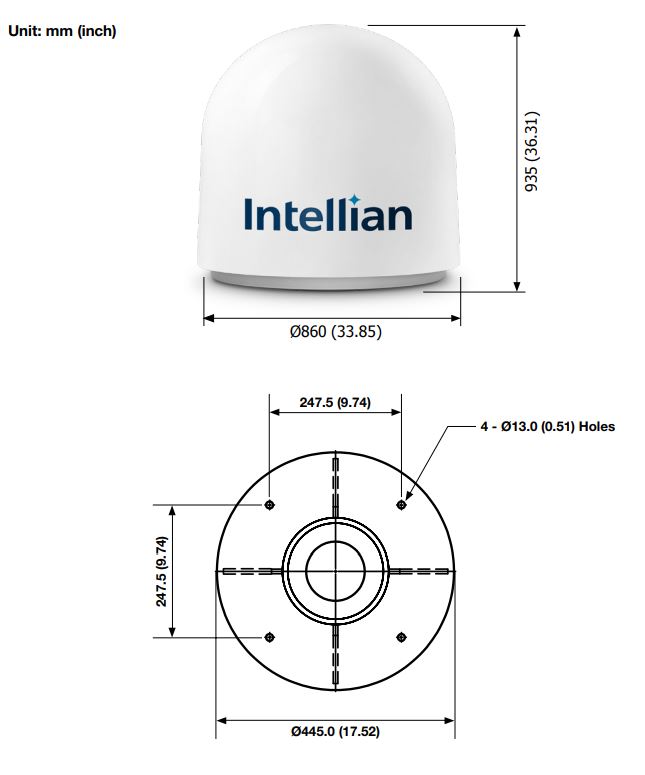

  • Radome Dimension : 86x93.5 cm (33.85x36.8 inch)
  • Reflector Diameter : 65cm (25.6inch)
  • Antenna Weight : 42kg/ 92.6 lbs
  • TX Frequency : 13.75~14.5GHz Ku-band
  • RX Frequency : 10.7~12.75GHz Ku-band
  • TX Gain : 37.9 dBi @ 14.25 GHz (excl. radome)
  • RX Gain : 36.5 dBi @ 11.7 GHz (excl.radome)
  • G/T : 15.5 dB/K (min.)

Technical characteristics

Band : Ku
BUC : 6W
LNB : 1
Parabola diameter : 65cm
Type : 3 axes
