WINDYPLUG

Wind and weather sensors Ref : LC-WINDYPLUG

WindyPlug NMEA2000 interface for Wind Sensors, smaller, cheaper with embedded barometer.

PRICE : NC


Description

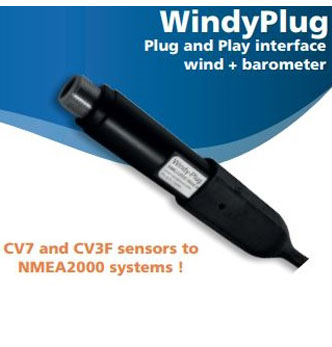

Plug and Play interface wind + barometer

WindyPlug is an extension of BaroPlug with an nterface to connect any of our ultrasonic wind sensors to a NMEA2000®. All the data is transmitted to the NMEA2000® network ! WindyPlug features a MICRO C male plug to connectdirectly to the NMEA2000® bus.


Product advantages

WindyPlug NMEA2000 is a BaroPlug with an interface to connect LCJ capteurs Ultrasonic Wind Sensors to a NMEA2000 system. It features a MICRO C male plug to connect directly to the NMEA2000 bus. This is a Plug and Play device : Just install the sensor or your NMEA system's backbone to read atmospheric pressure, wind speed, wind angle, wind temp.
This new NMEA2000 interface for Wind Sensors WindyPlug NMEA2000 weights 35g and measures 13cm long for less than 2cm diameter. The measurement is displayed a resolution of millibar or one-tenth millibar (mb). It's also available in inches of mercury. It measures the pressure from 850 hPa to 1150 hPa to one decimal resolution and sends the relevant pgn to the NMEA network.
The interface connects to the end of CV7, CV7-V or CV7-C standard cable.
This method simplifies the installation with a lightweight, flexible and small diameter cable in the mast.


Features


In the box

1 X WindyPlug NMEA2000
1 X Installation manual

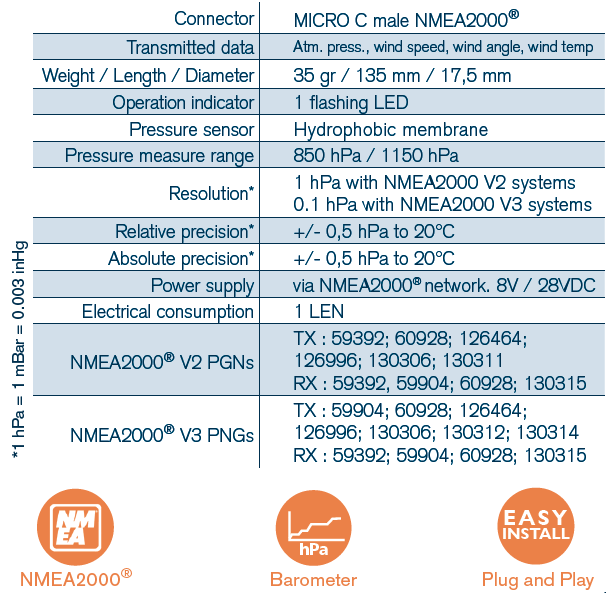

Technical characteristics

Applications : All
Brand : LCJ Capteurs
NMEA2000 : 1
Type : Other
Weight : 0.035 Kg
Power input : 12 V
