I6P

TV antennas Ref : IT-B4-619Q

Satellite TV antenna 60cm - 4 output

PRICE : 11 943,80 € With VAT (22%)


Description

Constant, Seamless Reception on I6P

The I6P is renowned for it’s robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6P is ideal for ocean cruisers, larger yachts and commercial vessels.
When equipped with WorldView LNB, the i6P can operate in any global coverage area without manual intervention.


Product advantages

The i6P is ideal for larger yachts or commercial vessels traveling across different global regions. With its highly accurate satellite tracking capability, the i6P outperforms in all conditions.


Features

The antenna I6P is characterized by :

  • The available i6P is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances
  • The i6P is equipped with Automatic Skew Control combined with extended elevation (-15° to 90°) for operation in extremely high latitudes
  • Auto satellite switching function from your remote control
  • Compatible with leading satellite TV service providers around the world
  • 45° per second turn rate ensures signal tracking at high speeds and in rough seas
  • Simplicity of design, no external compass or rate sensors required
Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis high speed tracking system
High Performance Antenna

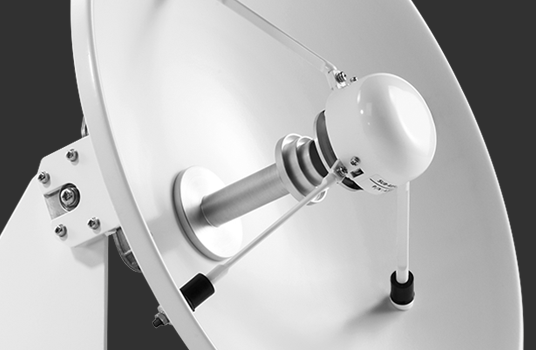

  • 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
  • Built-in HD module for Ku-band HD TV reception

iQ²: Quick&Quiet Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

 Antenna Control Unit

  • Intuitive controls and digital satellite information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

 Built-in GPS and NMEA 0183 Interface

  • The i6P includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

 Stylish Radome Profile

  • 70 cm (27.5 inch) antenna radome diameter
  • Antenna weighs less than 20 kg (44 lbs)


In the box

1 X Antenna I6P
1 X ACU control unit
1 X RF Cable, 3m (ACU <-> Decoder)
1 X RF Cable, 15m (<-> ACU Antenna)
1 X Power cable, 10m (ACU <-> 12 / 24Vdc power supply)
1 X PC series cord, 1,80m
1 X Lot of screws
1 X NMEA connector
1 X Power connector
1 X Installation CD
1 X User Manual
1 X Quick Setup Guide

Technical characteristics

Decoder output : 4
Parabola diameter : 60 cm
PIRE : 47 dBw
Type : 2 axes
LNB : 4
