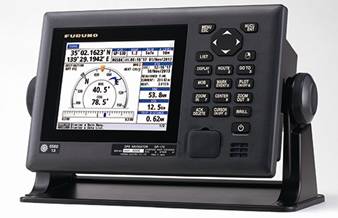

GP170/GPA022S
GPS single function with display Ref : IMD032260UAGPS Plotter Wheelmark 5,7 LCD color VGA (640 x 480) WAAS/EGNOS/WM
PRICE : 3 525,80 € With VAT (22%)Technical characteristics
Channels : 12
NMEA0183 : 4
Power input : 12/24 V
Resolution : 640 x 480 Pixels
Screan size : 5.7
Type : WAAS/SBAS
Waterproof : 25 IP
WheelMarked : Yes
Parts and accessories
| 00124412000 | CABLE ASSEMBLY MJ-A6SPF0011-200C 03S9202-2 | NC |
| 00015969110 | MJ-A6SPF0011-100C CABLE EQUIPE DATA 4PF<->6PF PLASTIC 10M - Replaced by 00159611000 | NC |
| 00016460910 | MOD-WPAS0001-030+ MOD-WPAS0001-030+ 19S1129-0 | NC |
| 00101453000 | SP14-03001(BOX) SPARE PARTS IF-2503/MD-550 | NC |
| 00111190010 | NO.13-QA310 L-ANGLE MOUNTING BASE 22S0287 | NC |
| 00111191010 | NO.13-QA330 RIGHT ANGLE MOUNTING BASE 22S0286 | NC |
| 00111192010 | NO.13-RC5160 HANDRAIL MOUNTING BASE 22S0329 | NC |
| 00116317010 | 8D-FB-CV CAVO 30M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159594000 | NC |
| 00116319010 | 8D-FB-CV CAVO 50M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159595000 | NC |
| 00116322010 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104690 - Replaced by 00159593000 | NC |
| 00117311010 | TNC-PS/PS-3D CAVO 15M PER GPS TNC-PS/PS-3D-L15M-R TNC-TNC 20S0216-4 | NC |
| 00124389000 | OP20-40 FLUSH MOUNT KIT (S-TYPE) - Replaced by 00132124000 | NC |
| 00124390000 | OP20-41 FLUSH MOUNT KIT (F-TYPE) - Replaced by 00132125000 | NC |
| 00124391000 | SP20-01401(BOX) SPARE PARTS | NC |
| 00001093100 | IF-2503-V UNITE D'INTERFACE | NC |
| 00124413000 | MJ-A6SPF0012-200C CABLE ASSEMBLY 64S4071-2 | NC |
| 00132124000 | KIT MONTAGGIO INCASSO GP-170 OP20-40 FLUSH MOUNT (S-TYPE) CHINA | 115,90 € With VAT (22%) |
| 00132125000 | KIT MONTAGGIO INCASSO GP-170 OP20-41 FLUSH MOUNT (F-TYPE) FRONT PANEL MOUNT | 115,90 € With VAT (22%) |
| 00158886000 | MOD-WPAS0001-030+ LAN CABLE ASSEMBLY 19S1129-0 | NC |
| 00159593000 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| 00159594000 | 8D-FB-CV 30M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| 00159595000 | 8D-FB-CV 50M ANTENNA CABLE ASSEMBLY 20S104691 | 1 134,60 € With VAT (22%) |
| 00159607000 | MJ-A6SPF0012-100C CABLE ASSEMBLY 64S4071-2 | NC |
| 00159610000 | MJ-A6SPF0011-050C CABLE ASSEMBLY 03S9202-2 | NC |
| 00159611000 | MJ-A6SPF0011-100C CABLE ASSEMBLY 03S9202-2 | NC |
| 00436578000 | KIT FISSAGGIO AD ALBERO GPA017 CP20-01111 FISSAGGIO ANTENNA PER ANTENNA GPS | 91,50 € With VAT (22%) |
| 00437242000 | CP20-01701 ANTENNA CABLE ASSEMBLY GP/GPS | NC |
| 00438119000 | CP20-02701 CABLE D'AERIEN PER CAVO ARMATO FURUNO | 231,80 € With VAT (22%) |
| 00015968811 | MJ-A7SPF0003-050C CAVO NMEA183 DA 5M CONNETTORE 7-PIN 20S0241-3 | 103,70 € With VAT (22%) |
| 00001010100 | IF-2503 INTERFACE UNIT | NC |
| 00001179200 | PP-505FP PRINTER COMPLETE SET GP-150/DUAL | NC |
| 00001348500 | PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V | NC |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 793,00 € With VAT (22%) |
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00001709800 | MD-200 DATA SELECTOR DATA SELECTOR - Replaced by 00003842400 | NC |
| 00002363700 | OP20-42 BEACON RECEIVER SET - Replaced by 00002703300 | NC |
| 00002363800 | GPA-020S ANTENNA UNIT - Replaced by 00002701700 | NC |
| 00002363900 | GPA-021S ANTENNA UNIT | NC |
| 00002701700 | GPA-020S ANTENNA UNIT CHINA | NC |
| GPA-021S | GPA-021S ANT GPA-021S CHINA | NC |
| 00002703300 | OP20-42 KIT DGPS WITH GPA021S old pour GP170 S/N < 6460-0000 | NC |
| GPA-017S | GPA-017S GPA-017S - - Replaced by 00019273410 | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00003783100 | IF-2550-IEC1 DISTRIBUTORE NMEA MULTI-DISTRIBUTOR NMEA0183 CIF/AD-10 E ALLARMI IEC61162-1 | NC |
| 00003784000 | GPA-023S ANTENNA UNIT CHINA | NC |
| OP20-55 | OP20-55 BEACON RECEIVER SET CHINA | NC |
| 00003842400 | MD-200 DATA SELECTOR - | NC |
| 00003783900 | ANTENNA DGPS/ DGLONASS GP170 | NC |
| 00015969010 | MJ-A6SPF0011-050C MJ-A6SPF0011-050C 03S9202-2 - Replaced by 00159610000 | NC |
| 00015405410 | Data cable (6PF<->Nu) 5m | 48,80 € With VAT (22%) |
| 00015405310 | MJ-A6SPF0012-050C MJ-A6SPF0012-050C 64S4071-2 | NC |
| 00003925100 | OP20-56 KIT DGPS WITH GPA021S Pour GP170 s/n 6460-0001 et + | NC |
| 00003925200 | OP20-57 BEACON RECEIVER SET CHINA | NC |
| 00015403710 | MJ-A6SPF0012-100C CABLE EQUIPE DATA 6PF<->6PF PLASTIC 10M - Replaced by 00159607000 | NC |
| 00004054100 | GPA-017S ANTENNA UNIT - - Replaced by 00019273410 | NC |
| 00003784100 | GP170-EN01522S6 GNSS NAVIGATOR 1SET CHINA | NC |
| 00132034000 | 20P8210(LF) PNL PRINTED CIRCUIT BOARD CHINA | NC |
| 00126038000 | GR-1700-A DGPS BEACON RECEIVER - Replaced by 00130330000 | NC |
| 00596341000 | 16P0117(LF) LED PRINTED CIRCUIT BOARD PP-505 | NC |
| 00558182000 | 16P0058(LF)DS PRINTED CIRCUIT BOARD EGC-5/6 | NC |
| 00451160000 | FOR STP411G-320 HEAD UNIT NX-500 | NC |
| 00126042000 | 20P8209(LF) MAIN PRINTED CIRCUIT BOARD - - Replaced by 00133522000 | NC |
| 00130331000 | 20P8211(LF) GPS PRINTED CIRCUIT BOARD CHINA - Replaced by 00143751000 | NC |
| 00100821000 | 08P3154A(LF) POWER PRINTED CIRCUIT BOARD PP-505 | NC |
| 00163204000 | GR-1700-D DGPS BEACON RECEIVER CHINA | NC |
| 00162471000 | 20P8209(LF) MAIN PRINTED CIRCUIT BOARD CHINA 20E40780 | NC |
| 00161492000 | 20P8211D(LF) GPS PRINTED CIRCUIT BOARD CHINA | NC |
| 00100822000 | 08P3159A(LF) FILTER PRINTED CIRCUIT BOARD PP-505 | NC |
| 00132133000 | GP170 PNL PANEL ASSEMBLY CHINA | NC |
| 00103461000 | 16P0052C(LF)PANELCPU PRINTED CIRCUIT BOARD PP-505-FP | NC |
| 00104577000 | 80-0683 FM CONNECTOR ASSEMBLY PP-505FE | NC |
| 00132129000 | GP170 LCD LCD ASSEMBLY CHINA | NC |
| 00132130000 | GP170 BRACKET BRACKET ASSEMBLY CHINA | NC |
| 00159113000 | 20P8211C(LF) GPS PRINTED CIRCUIT BOARD CHINA - Replaced by 00161492000 | NC |
| 00003925400 | GPA-017S ANTENNA UNIT | NC |
| 00156021000 | 20P8209(LF) MAIN PRINTED CIRCUIT BOARD CHINA 20E40737 | NC |
| 00133524000 | GP170 R-COVER REAR COVER ASSEMBLY CHINA | NC |
| 00133523000 | 20P8220(LF) UFL-ANT PRINTED CIRCUIT BOARD CHINA | NC |
| 00133522000 | 20P8209(LF) MAIN PRINTED CIRCUIT BOARD CHINA - Replaced by 00156021000 | NC |
