Product advantages
Enhances the navigation efficiency and safety by watching NAVTEX messages broadcasted on both international and local channels
The NX700A can receive the international NAVTEX messages as well as domestic or local NAVTEX messages at the same time.
Features

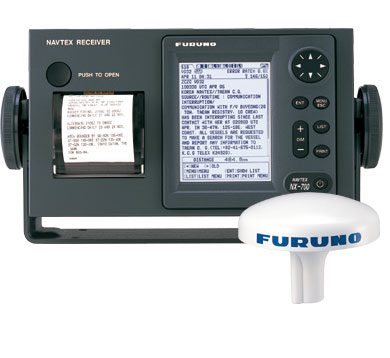

The navtex receiver NX700A :
- Fully meets new IMO resolution MSC.148 (77) to be implemented on and after 1 July 2005 requiring
- Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously
- Incorporates a printing device
- 200 message of average length 500 characters can be stored in nonvolatile memory
- Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception
- Display messages on a clear 5" silver bright LCD
- Low power consumption
- NAV data display acts as NMEA repeater for GPS or instruments
In the box
1 X Control screen
1 X Caliper
2 X Wheels
1 X Receiver
1 X Antenna (optional cable to be ordered)
1 X Data cable, 3m
1 X Kit of screws
1 X Installation kit
1 X Fuse
1 X User Manual
Technical characteristics
Display : LCD
Frequency : 490 & 518 kHz
Function : Receiver
Power input : 12/24 V
Screan size : 5
Type : Navtex
WheelMarked : YES
Parts and accessories
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00451526000 | OP08-19 OP08-19 NX-700A | NC |
| 00436578000 | KIT FISSAGGIO AD ALBERO GPA017 CP20-01111 FISSAGGIO ANTENNA PER ANTENNA GPS | 91,50 € With VAT (22%) |
| 00015404710 | TP058-30CL PAPIER IMPRIMANTE 58MM x30M NX700 NX700 - Replaced by 00015404711 | NC |
| 00108555010 | CAVO 15M DISPLAY-PROCESS NX700 DSUB25P-DSUB25P-15M 08S0367 | NC |
| 00108556010 | DSUB25P-DSUB25P-3M DSUB25P-DSUB25P-3M 08S0367 | NC |
| 00109338010 | CABLE ASSEMBLY 04S4168 *30M* 04S4168 - Replaced by 00159579000 | NC |
| 00109340010 | 04S4168 *50M* CABLE ASSEMBLY 04S4168 - Replaced by 00159581000 | NC |
| 00109339010 | 04S4168 *40M* CABLE ASSEMBLY 04S4168 - Replaced by 00159580000 | NC |
| 00109337010 | 04S4168 CAVO ANTENNA 20M NX700 PER NAVTEX/WEATHER FAX 04S4168 - Replaced by 00159578000 | NC |
| 00109336010 | 04S4168 *10M* CABLE EQUIPE - Replaced by 00159577000 | NC |
| 00003812700 | NX-700A/7001/7H-E RECEIVER UNIT | NC |
| 00001010000 | NX-test DISPLAY UNIT - | NC |
| 00004208600 | NX-7H-0-N ANTENNA NX700 - | NC |
| 00451501000 | 08P3226(LF) PWR PRINTED CIRCUIT BOARD NX-700-A/800A | NC |
| 00451502000 | 08P3227(LF) RCV PRINTED CIRCUIT BOARD NX-7001-A/B/HK | NC |
| 00451523000 | UTP-58E-FU THERMAL PRINTER - | NC |
| 00852365000 | FP03-09204 KNOB KNOB MODLE1833/19X3 | NC |
