TZT16F
Pantallas multifunción NavNet TZtouch Ref : IMD035000ABNavNet TZtouch3 Chart Plotter/Fish Finder, 16" Touch Screen Display
PRECIO : 6 453,80 € Con IVA (22%)Descripción
Go on a power trip with the most powerful MFD series available
This lightning-fast 16" Multi Function Display features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics. Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder.
Quad-core processor for lightning-fast response

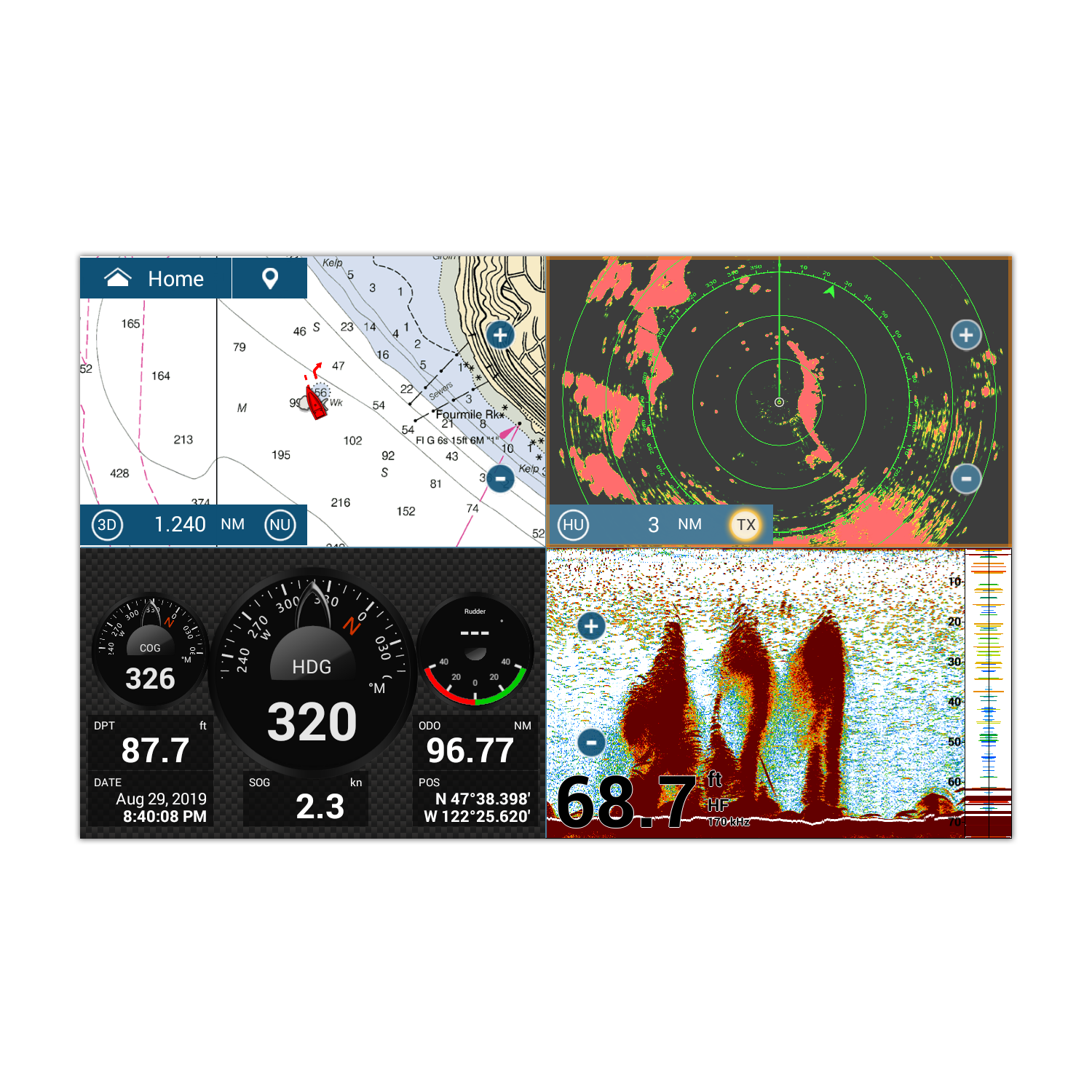

NavNet TZtouch3 offers three display options. The 12" Hybrid Control TZT12F is an IPS multi touch display with an integrated control panel, including FURUNO's intuitive RotoKey™ and dedicated physical buttons to complement NavNet TZtouch3's multi-touch controls. The 16" TZT16F and 19" TZT19F are sleek, all-glass, multi-touch IPS displays that deliver stunning presentations from virtually any angle. All models incorporate a powerful quad-core processor that takes NavNet's TimeZero technology to the next level, offering 4-way split-screen displays and lightning-fast response time.

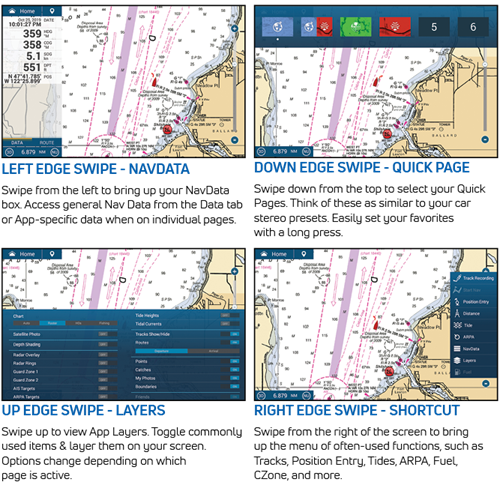

Very EASY to use; because finding your happy place shouldn't be difficult!
We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

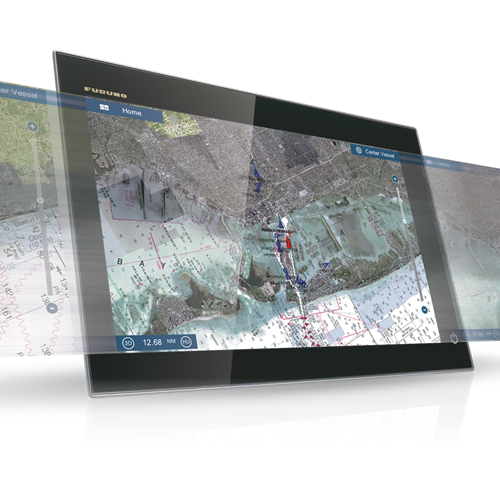

TimeZero™ Technology is faster than ever before
TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth & seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

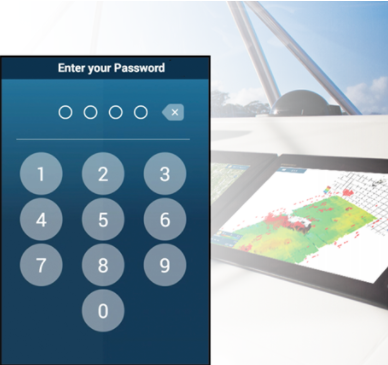

Pin Code Lock - require a password to access your TZtouch3 upon startup
The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

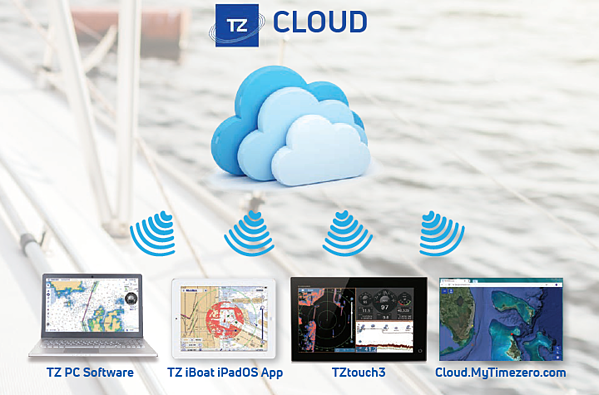

NEVER LOSE WAYPOINTS, ROUTES OR SETTINGS AGAIN WITH TZ CLOUD
Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)

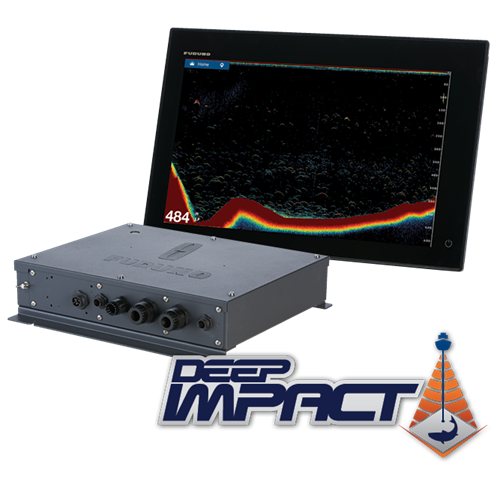

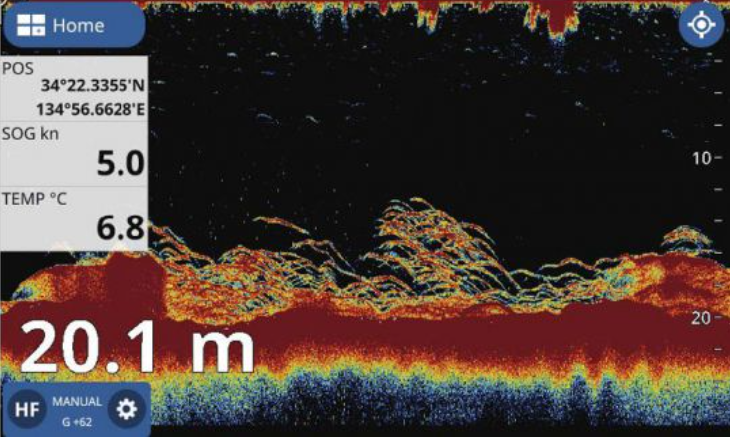

Built-in Dual Channel 1 kW TruEcho CHIRP™ & CW Fish Finder
Every TZtouch3 MFD includes a built-in 1kW, dual-channel TruEcho CHIRP Fish Finder. TruEcho CHIRP™ , designed to operate across a wide range of frequencies utilizing a broadband transducer, delivers significant advantages in signal clarity & target definition. Due to the constant sweeping of frequencies, TruEcho CHIRP™ is capable of gathering more & higher-quality data than traditional Fish Finders. For those looking for a higher-power CHIRP Fish Finder, FURUNO has made it possible to pump up the power of TruEcho CHIRP™ by interfacing the Deep Impact DI-FFAMP to the internal Fish Finder. Deep Impact boosts your power to a 2 kW or 3 kW CHIRP Fish Finder, ensuring that fish and bottom echoes come back sharp & clear at greater depths. Alternatively, the built-in Fish Finder is capable of outputting a traditional CW signal for those who prefer the industry-standard 50/200 kHz.
We gave you something to CHIRP about!
You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

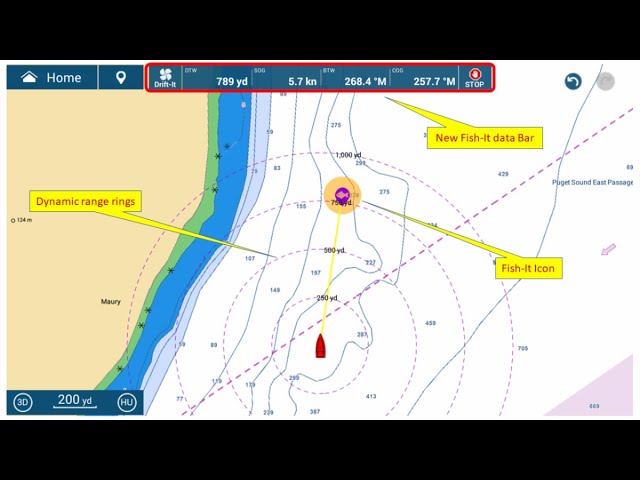

Revolutionary New Features for Fishermen - Fish-It & Drift-It!
The Fish-It & Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you'll pass right over your fishing point. Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary "fishing go-to point" with dynamic range rings, a course line between the point and the boat, and a temporary track line. Now activate Drift-It, an exciting new feature that automatically creates a starting point for the vessel to drift directly over your Fish-it spot. Select a 3-minute, 5-minute, or even a 20-minute drift, navigate to the starting point, and drift to the Fish-it location in the time selected. This is a game-changer for fishermen!

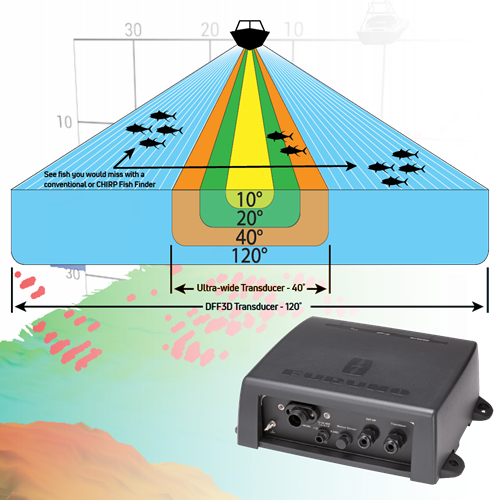

More power to see 120 degrees port-to-starboard; giving you an edge over the competition
Normal down-sounding Fish Finders have a beam angle of 40º or less. But with the DFF3D Multi Beam Sonar, you see 120° port-starboard for 200m (650+ ft). Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP™, you’ll have the ultimate fishing machine!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!
The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

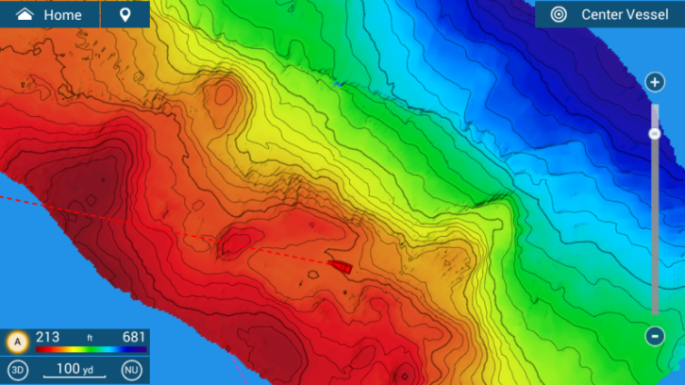

Create stunning shaded relief charts on your NavNet TZtouch3 MFD with PBG
Using the DFF3D Multi-Beam Sonar, NavNet TZtouch3's PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. The area each ping covers is approximately twice the depth at the time of recording, so at a depth of 100 meters, a 200 meter-wide area is displayed and recorded to your NavNet TZtouch3 MFD.

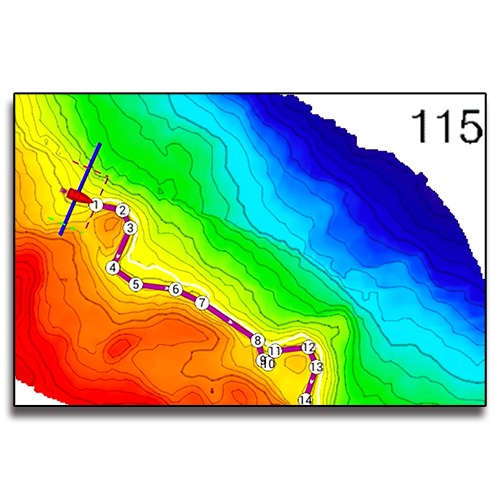

Follow-It instantly creates a constant-depth route!
The amazing Follow-It feature leverages the power of PBG (Personal Bathymetric Generator) from your DFF3D Multibeam Sonar to instantly create a constant-depth route to navigate a specific depth contour. With just a swipe and tap, Follow-It creates a white line on the PBG chart indicating the constant depth. Tapping the line instantly transforms it to an active route, sent directly to your NavPilot Autopilot. NavPilot will follow the depth route all the way around a ridge or trough. By following specific depth contours, fishermen can keep their baits at the same level as the fish while trolling without constantly adjusting the reels. Having your bait at the correct depth is critical to catching fish in areas where tide and currents flow along structure where gamefish concentrate.

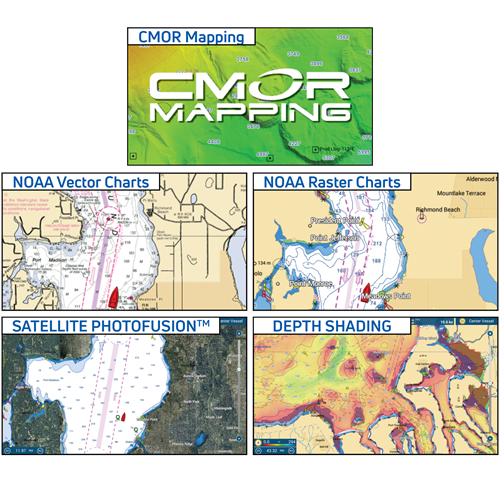

MapMedia Raster and Vector Chart Library
Freely choose the charts that fit your individual needs. Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be easily unlocked. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.
Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.
And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.

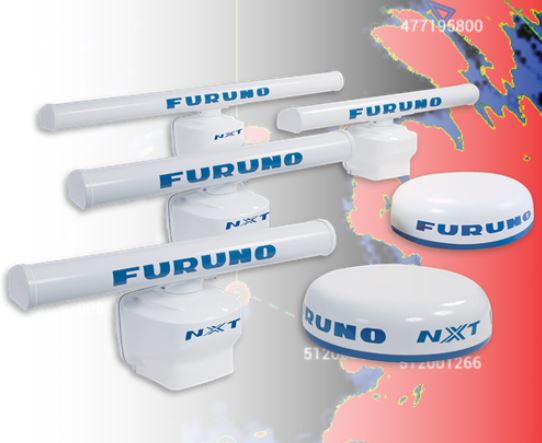

More power means better detection of all the targets around you
Are you ready to go on a Radar power trip? Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno's NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.

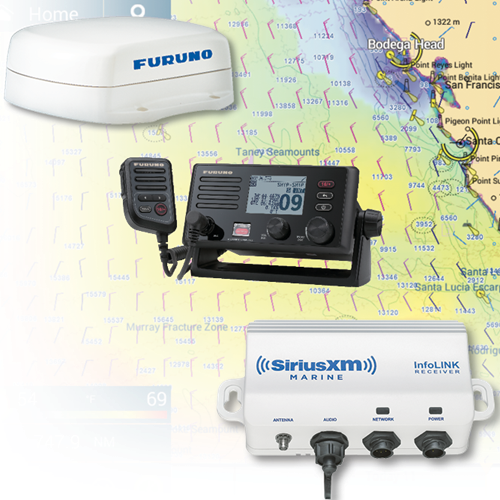

Build the ultimate Navigation Suite
The beauty of NavNet TZtouch3 is its scalability - systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.
Ventajas del producto
It has all THE POWER you've wanted... and more.
• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRPTM & CW Fish Finder
• High-power 2/3/5kW* TruEcho CHIRPTM Fish Finder network amp
• Power-packed 100W & 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan
• Large 19" and 16" multi-touch IPS display for maximum brightness
• Hybrid 12" display with RotoKeyTM and buttons for added accessibility
• Pin Code Lock - require a password to access your TZtouch3 upon startup
*Connect a 5kW or 10kW transducer using BT-5, power output is 3kW
Funciones
DISPLAY UNITDISPLAY UNIT
Type: Color TFT multi touch In-Plane Switching (IPS) LCDScreen Size 15.6" Wide
Screen Resolution: FHD 1920 x 1080
Screen Brightness: 1 000 cd/m2 (typical)
Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language : Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
GPS/WAAS
Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving Frequency: L1 (1575.42 MHz)
Time to First Fix: 100 s (cold start)
Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update: Interval 0.1 s
CHART PLOTTER: Cartography MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory Capacity: 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)
RADAR
Display Modes: Head-up*, North-up* (*Heading input required).
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
FISH FINDER
Transmit Frequency: CW: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Transducer: 300/600 W or 1 kW* (*Matching box MB1100 required for some FURUNO transducers).
Display Range: 2-1, 200 m, shift: 0-1200 m
Extension Mode: ACCU-FISH™ , A-Scope, Auto (Fishing/Cruising), RezBoost™ , Bottom Discrimination, TruEcho CHIRP™
Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option): School of fish, School of fish for bottom lock
INTERFACE
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Serial Output Port
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0) for touch monitor and control unit
Video I/O
- Input: 2 Ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)
- Output: 1 Port (HDMI 1 080p)
SD Card Slot: 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm maxTransducer: 1 Port
ENVIRONMENT
Temperature (IEC60945): -15°C to +55°C
Relative Humidity: 93% or less at +40° C
Waterproofing: IP56
POWER
12-24 VDC
4.3 - 2.2 A
Contenido
TZT16F-E MULTI FUNCTION DISPLAY 1 SET
INCLUDING:
- POWER CABLE FRU-3P-FF-A002M-001 (2 M) 1 PC
- 12-10 PIN ADAPTER CABLE FRU-CCB12-MJ-01 (0.5 M) 1 PC
- INSTALLATION MATERIALS
- ACCESSORY
NOTE:
- FLUSH MOUNT AS STANDARD
- ORDER THE OPTIONAL OP19-21 FOR BRACKET MOUNT
Características técnicas
Brillo : 1000 cd/m2
Estanqueidad : 56 IP
GPS integrado : 1
NMEA0183 : OUTPUT
NMEA2000 : 1
Resolución : 1920 x 1080 Pixels
Sonda CHIRP de 1KW integrada : 1
Sonda integrada : 1
Tamaño de pantalla : 15.6
Wifi integrado : 1
Piezas y accesorios
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € Con IVA (22%) |
| 00001176200 | HUB-101 ETHERNET HUB 12-24V/TZT/TZT2/TZT3 - | 963,80 € Con IVA (22%) |
| 00001178300 | 525STID-MSD SONDE 600W SONDE B744 | 796,54 € Con IVA (22%) |
| 00001178400 | 525STID-PWD SONDE TA PLAST. SONDE AF/BD/ (RB) | 411,31 € Con IVA (22%) |
| 00001252000 | BT-5-1 BOOSTER BOX 10KW/MONOFREQUENCE - | 1 024,80 € Con IVA (22%) |
| 00001252100 | BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA - | NC |
| 00001348400 | PR-62 (CHINA) AC100V ALIMENTATION AC/DC | 991,43 € Con IVA (22%) |
| 00001348500 | PR-62 (CHINA) AC110V ALIMENTATION AC/DC AC110V | 991,43 € Con IVA (22%) |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 750,30 € Con IVA (22%) |
| 00001348700 | PR-62 (CHINA) AC230V ALIMENTATION AC/DC AC230V | 991,43 € Con IVA (22%) |
| 00001500500 | 28F-38M *15M* SONDE 5 kW ; 28 kHz | 4 336,84 € Con IVA (22%) |
| 28F-38M | 28F-38M *30M* SONDE 5KW 28KHZ 30M 5KW 28KHz 30M | 4 620,52 € Con IVA (22%) |
| 28F-72 | 28F-72 *15M* SONDE 10KW 28KHZ 15M 10KW 28KHz 15M | 5 921,99 € Con IVA (22%) |
| 00001500800 | 28F-72 *30M* TRANSDUCER | 6 195,57 € Con IVA (22%) |
| 50F-38 | 50F-38 *15M* SONDE 5KW 50KHZ 15M 5KW 50KHz 15M FCV1200+BT5 | 4 247,39 € Con IVA (22%) |
| 00001501100 | 50F-70 15M SONDE 10 kW ; 50 kHz | 5 185,98 € Con IVA (22%) |
| 88B-10 | 88B-10 TRASDUTTORE 88kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA | 1 182,18 € Con IVA (22%) |
| 200B-5S | 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003834800 | 452,74 € Con IVA (22%) |
| 00001503000 | 200B-8 *10M* TRANSDUCER | 635,53 € Con IVA (22%) |
| 200B-8B | 200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA | NC |
| 50B-6 | 50B-6 *10M* SONDE 1KW 50KHZ - Sustituido por 00003835100 | 411,31 € Con IVA (22%) |
| 50B-6B | 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Sustituido por 00003835800 | 396,52 € Con IVA (22%) |
| 00001506800 | 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA | 3 750,28 € Con IVA (22%) |
| 200B-12H | 200B-12H *15M* SONDE 5KW 200KHz 15M 5KW 200KHz | NC |
| 00001507300 | 68F-30H TRANSDUCER | 2 785,60 € Con IVA (22%) |
| 00001507400 | 150B-12H 15M TRANSDUCER | 4 421,18 € Con IVA (22%) |
| 28BL-6HR | 28BL-6HR TRASDUTTORE 28kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 28BL-12HR | 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 38BL-9HR | 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 82B-35R | 82B-35R SONDE 2KW 65<->110 KHz 15M | 4 288,29 € Con IVA (22%) |
| 00001509200 | 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | 4 623,80 € Con IVA (22%) |
| 50BL-12HR | 50BL-12HR TRASDUTTOR 50kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | 3 037,80 € Con IVA (22%) |
| 00001509400 | 50BL-24HR TRASDUTTOR 50kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
| 00001517000 | 50/200-1T TRASDUTTORE 1kW 50/200kHZ CAVO DA 10M NO CONN RICOPERTO IN GOMMA - Sustituido por 00003835000 | 1 355,81 € Con IVA (22%) |
| 00001520400 | 520-5PSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN PLASTICA PASSA-SCAFO | 225,70 € Con IVA (22%) |
| 00001520500 | TFB-4000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.4 THRU-HULL PIPE | 180,56 € Con IVA (22%) |
| 00001520600 | TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE | NC |
| 00001520700 | TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - | 1 135,49 € Con IVA (22%) |
| 00001520900 | TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE | 1 024,80 € Con IVA (22%) |
| 00001521200 | 520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE | 524,60 € Con IVA (22%) |
| 00001521500 | TRB-1000(1) THRU-HULL PIPE | NC |
| 00001521800 | TRB-1100(2) THRU-HULL PIPE | 2 378,05 € Con IVA (22%) |
| 00002051000 | IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Sustituido por 00003767000 | 369,89 € Con IVA (22%) |
| 00002253200 | TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE | 1 024,80 € Con IVA (22%) |
| 00002301900 | 525T-PWD TRANSDUCER AF/BD/ (RB) | 213,06 € Con IVA (22%) |
| 00002302000 | 525T-BSD TRANSDUCER AF/BD/ (RB) | 384,69 € Con IVA (22%) |
| 00002302100 | 526TID-HDD SONDE B260 10 PINS TRANSDUCER AF/BD/ (RB) | 2 328,15 € Con IVA (22%) |
| 00002367600 | SS60-SLTD/12 TRANSDUCER 02H100540 | 858,68 € Con IVA (22%) |
| 00002367700 | SS60-SLTD/20 TRANSDUCER 02H100550 | 858,68 € Con IVA (22%) |
| 00002367800 | 525T-LTD/20 TRANSDUCER AF/BD/ (RB) | 598,81 € Con IVA (22%) |
| 00002367900 | 525T-LTD/12 TRANSDUCER AF/BD/ (RB) | 598,81 € Con IVA (22%) |
| 00002368000 | 520-PLD TRANSDUCER AF/BD/ (RB) P319 / 520-PLD | 254,48 € Con IVA (22%) |
| MCU-002 | Remote controle TZTL12F/TZTL15F/TZT9/TZT14/TZT2BB | 206,18 € Con IVA (22%) |
| SDU-001 LETTORE CARTE 2XMICROS | SDU-001 LETTORE CARTE microSD USB CAVO DA 2M 19S113070 | 167,86 € Con IVA (22%) |
| 00002722600 | MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE - | 451,40 € Con IVA (22%) |
| 00002740400 | PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA | NC |
| 00002740500 | PM111LM TRANSDUCER | NC |
| CM599LHG | CM599LHG TRASDUTTORE CHIRP 3kW 28-60/130-210kHz BROADBAND URETANO CON SENS TEMP | NC |
| CM599LM | CM599LM TRANSDUCER 28-60 kHz et 80-130 kHz | NC |
| 00002740900 | TRB-1100(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE | NC |
| 00002743800 | 100B-10R TRANSDUCER | NC |
| 525-5PWD | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Sustituido por 00003827700 | NC |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | 1 276,72 € Con IVA (22%) |
| MCU-004 | Remote controle TZTL12F/TZTL15F/TZT9/TZT14/TZT2BB | 475,80 € Con IVA (22%) |
| MCU-005 | Remote controle TZTL12F/TZTL15F/TZT9/TZT14/TZT2BB | 1 647,00 € Con IVA (22%) |
| 00003550000 | TM150M CHIRP TRANSDUCER 19S113620 | 932,12 € Con IVA (22%) |
| 00003550100 | B-75L CHIRP TRANSDUCER 19S113640 | 1 936,87 € Con IVA (22%) |
| 00003550200 | B-75H CHIRP TRANSDUCER 19S113630 | 2 031,03 € Con IVA (22%) |
| 00003550300 | B-175L CHIRP TRANSDUCER 19S113650 | 3 447,50 € Con IVA (22%) |
| 00003550400 | B-175H CHIRP TRANSDUCER 19S113610 | 2 468,71 € Con IVA (22%) |
| 00003553400 | GC-001 COMMANDE GESTUELLE DEPORTEE | 434,32 € Con IVA (22%) |
| DI-FFAMP | DI-FFAMP FISH FINDER AMPLIFIER W/ 5M CABLES TO TZT3 | NC |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | 317,20 € Con IVA (22%) |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Sustituido por 000037820NM | NC |
| 00003827700 | 525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA | 190,45 € Con IVA (22%) |
| 200B-5S | 200B-5S *10M* TRANSDUCER 02S3110-2 | 348,92 € Con IVA (22%) |
| 50/200-1T (RUBBER) | 50/200-1T (RUBBER) DUAL FREQ. TRANSDUCER FCV-552 | 1 232,20 € Con IVA (22%) |
| 50B-6 | 50B-6 *10M* TRANSDUCER | 411,31 € Con IVA (22%) |
| 00003835500 | 68F-30H TRANSDUCER | 2 785,60 € Con IVA (22%) |
| 50B-6B | 50B-6B *15M* TRANSDUCER | NC |
| 00003908800 | 88F-126H TRANSDUCER 02S3024-2 | 4 221,85 € Con IVA (22%) |
| 00008644300 | OP03-136 OP03-136 - | 122,40 € Con IVA (22%) |
| 00015968911 | MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2 | 101,42 € Con IVA (22%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 37,66 € Con IVA (22%) |
| 00016717110 | MOD-Z073-030+ CAVO LAN 3M RJ45/RJ45 PER HUB 19S1146-0 - Sustituido por 00158889000 | 83,94 € Con IVA (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € Con IVA (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € Con IVA (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € Con IVA (22%) |
| 00124766000 | NCS-2RNCTSB *20M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00124767000 | NCS-2RNCTSB *50M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00124768000 | NCS-2RNCTSB *100M* CABLE ASSEMBLY 02S4191-1 | NC |
| 00014250300 | C332 10M CABLE EQUIPE MJ-A10SPF/SRMD-100 | 396,52 € Con IVA (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € Con IVA (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € Con IVA (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € Con IVA (22%) |
| 00150705000 | FRU-MM1MF1MF1001 MICRO T-CONNECTOR MASCHIO/FEMMINA/FEMMINA | 79,30 € Con IVA (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € Con IVA (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € Con IVA (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00156039000 | FRU-F12F12-100C CABLE ASSEMBLY 02S101320 | 135,58 € Con IVA (22%) |
| 00156040000 | FRU-F12F12-200C CABLE ASSEMBLY 02S101320 | 180,78 € Con IVA (22%) |
| 00156042000 | FRU-F7F7-100C CABLE ASSEMBLY 02S101310 | 101,42 € Con IVA (22%) |
| 00156043000 | FRU-F7F7-200C CABLE ASSEMBLY 02S101310 | 138,81 € Con IVA (22%) |
| 00156394000 | OP19-21 TZT3 16F BRACKET ETRIER TZT16F (TZT3) | 506,30 € Con IVA (22%) |
| 00156398000 | OP19-23 RETROFIT KIT TZT3 16F DA NSS16 EVO3 & GPSMAP7616 | 323,30 € Con IVA (22%) |
| 00158880000 | MJ-A6SPF0016-005C CABLE ASSEMBLY 19S1020-2 | 101,42 € Con IVA (22%) |
| 00158889000 | MOD-Z073-030+ LAN CABLE ASSEMBLY 19S1146-0 | 58,56 € Con IVA (22%) |
| 00160551000 | OP19-26 CONNECTOR KIT FOR TX SYNC TZT12F/16F/19F | 224,89 € Con IVA (22%) |
| 00160845000 | 12-Pin Transducer Extension Cable, 10 Meter | 148,50 € Con IVA (22%) |
| OD-STARTER-KIT | KIT DE DEMARRAGE NMEA2000 CERTIFIE | NC |
| RO-00032 | CARTE SD/MICROSD 32GB CARTE 32GB PRECHARGEE - Sustituido por RO-00304 | NC |
| RO-00304 | CARTE SD/MICROSD 64GB CARTE 64GB PRECHARGEE | NC |
| MS-WIDE MM3D | WIDE CHART mm3 FOR NN3D/TZT/TZT2/TZERO MM3D | 305,00 € Con IVA (22%) |
| MS-MWIDE MM3D | MEGAWIDE CHART mm3 FOR NN3D/TZT/TZT2/TZERO MM3D | 610,00 € Con IVA (22%) |
| 00019709210 | FRU-3P-FF-A002M-001 CABLE ALIMENTATION TZT3 sauf TZT9F | 129,12 € Con IVA (22%) |
| B265LH | TRASDUTTORE B265LH CHIRP TZT3 1kW 42-65/130-210kHz BROADBAND BRONZO FAIRING & TEMP | 2 671,80 € Con IVA (22%) |
| CM265LH | TRASDUTTORE CM265LH CHIRP TZT3 1kW 42-65/130-210kHz BROADBAND URETANO CON TEMP | 2 427,80 € Con IVA (22%) |
| B275LH-W | B275LH-W SONDE TR BR 1KW CHIRP/P-T/XID/12M/12PLOTS WIDE BEAM | 3 525,80 € Con IVA (22%) |
| TM275LH-W | TM275LH-W SONDE TA PLAST. 1KW CHIRP/P-T/XID 12M/12PLOTS | 2 989,00 € Con IVA (22%) |
| P319DT | P319 SONDE TR PLAST. 600W 50-200KHZ/P-T/10M/10B P319D / 520-PLD / 00002368000 | NC |
| B60-12 | B60 12 SONDE TRBRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/12 00002367900 AF/BD | NC |
| SS60-0 | SS60-0 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| SS60-12 | SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M | NC |
| B45 | B45 SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M AF/BD/ 525T-BSD / 00002302000 | NC |
| B744V | B744V SONDE TR BRONZE 600W 50-200KHZ/P-T-V/10M 525STID-MSD 0000117800 | NC |
| B744VL | B744VL SONDE BRONZE 600W 50-200KHZ/P-T-V/10M +SABOT B744VL/FCV628/588/TZT2/GP/BBDS | NC |
| P66D | P66 SONDE TA PLAST. 600W 50-200KHZ/PROF/10M/10B 525T-PWD / 00002301900 - Sustituido por AI-31-470-4-01 | NC |
| P66 DST | P66 SONDE TA PLAST. 600W 50-200KHZ/P-V-T/10M/10B | NC |
| B260 | B260 SONDE TR BRONZE AVEC DUPL 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT 00002302100 | NC |
| M260 | M260 SONDE INT FIBRE 1KW 50-200KHZ/PROF/XID/10M/10B | NC |
| TM258 | TM258 DT SONDE TA PLAST. 1KW 50-200KHZ/1KW/XID 10M + Support pied - Sustituido por AI-41-404-1-03 | NC |
| TM260 | TM260 SONDE TA PLAST. 1KW 50-200KHZ/P-T/XID 10M + Support pied | NC |
| MMC-12F-FU | CABLE M&M/12BROCHES CHIRP TZT3 CORDON D'ADAPTATION | 168,36 € Con IVA (22%) |
| B60-20 | B60-20ø SONDE TR BRONZE 600W 50-200KHZ/P-T/XID/10M 525T-LTD/20 / 00002367800 | NC |
| P79 D | P79 SONDE INTER. PLAST. 600W 50-200KHZ/PROF/10M/10B | NC |
| B164 12 | B164 12ø SONDE BRONZE 1KW 50-200KHZ/P-T/XID/10M | NC |
| B164 20 | B164 20ø SONDE BRONZE 1KW 50-200KHZ/P-T/XID/10M | NC |
| SS164-20 | SS164-12ø SONDE TR INOX 1KW 50-200KHZ/P-T/XID 10M SS164-20 | NC |
| AI-33-046-01 | INSERT DE REMPLA. POUR B744V POUR SONDE B744V B744V | NC |
| AI-33-479-01 | SUPPORT PLAST. POUR P66 TA POUR SONDE P66 | NC |
| AI-33-476-06 | SABOT PROFILE 0 POUR B744V | NC |
| AI-33-203-04 | CAVO 9M PROLUNGA 10PIN M/F DST PER TRASDUTTORI CONN FURUNO SONDE 10B | 195,20 € Con IVA (22%) |
| AI-33-509-05 | SABOT PROFILE 0 POUR B45 | NC |
| AI-33-113 | ST650 ROUE A AUBE 4 PALES POUR B744V / ST800 | NC |
| AI-33-473-01 | ROUE A AUBE 4 PALES POUR P66 KIT 33-473-01 POUR P66 | NC |
| AI-20-073 | SUPPORT VENTOUSE SONDETRIE PORTABLE TRANSOM MOUNT BRACKET | NC |
| AI-33-073-02 | CORDON ADAPT 10PM<->8PF 1M C32 1M 8F-F 10M | NC |
| AI-33-391-01 | FAIRING BLOCK B260 HIGH PERFORMANCE - AIRMAR | 318,42 € Con IVA (22%) |
| AI-33-523-02 | SABOT PROFILE POUR B258 B285 Model B258 HP fairing block - Sustituido por AI-33-523-01 | NC |
| AI-33-539-02 | CAISSON POUR SONDE M260 Model M260 in hull tank kit | NC |
| AI-33-204-01 | CORDON ADAPT 8PM<->10PF 1M C332 1M 8M-F 10F | NC |
| B75L | TRASDUTTORE B75L 40-75kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 1 213,90 € Con IVA (22%) |
| B75L | B75L 12 DT SONDE TR BR CHIRP 40-75KHZ/300W/9M/M&M AI-33-1423-01 NECESSAIRE | NC |
| TM150M | TRASDUTTOR TM150M DT 95-155kHz 300W CHIRP DA POPPA PLASTICA PER GP1X71F TZT3 9F | 573,40 € Con IVA (22%) |
| B150M | TRASDUTTORE B150M 95-155kHz 300W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 677,10 € Con IVA (22%) |
| B75M | TRASDUTTOR B75M 80-130kHz 600W CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI | 1 354,20 € Con IVA (22%) |
| B75M | B75M 12 DT SONDE TR BR. CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75M | B75M 20 DT SONDE TR BR. CHIRP 80-130KHZ/600W/12M/10B | NC |
| B785M | B785M DT SONDE TR BRONZE CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75M | TRASDUTTORE SS75M 80-130kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI | 1 294,42 € Con IVA (22%) |
| SS75M | SS75M 12DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75M | SS75M 20DT SONDE TR INOX CHIRP 80-130KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75H | B75H 0DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75H | B75H 12DT SONDE TR BR CHIRP 130-210HZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B75H | B75H 20 DT SONDE TR BR CHIRP 130-210HZ/600W/12M/10B GP1X71F | NC |
| SS75H | TRASDUTTORE SS75H 130-210kHz 600W CHIRP ACCIAIO PASSANTE ECO/TEMP 0 GRADI | 1 294,42 € Con IVA (22%) |
| SS75H | SS75H 12DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| SS75H | SS75H 20DT SONDE TR INOX CHIRP 130-210KHZ/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| TM165HW | TM165HW DT SONDE TA PLAS CHIRP 150-250khz/600W/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175L | B175L 0 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE | 2 379,00 € Con IVA (22%) |
| AI-41-562-2-01 | B175L DT TRANSD BR 12° CHIRP 40-60KHZ/1KW/9M/10B | NC |
| B175L | B175L DT TRANSD BR 20° CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE | NC |
| TM185M | TM185M DT SONDE TA PLAS CHIRP 85-135khz/1kW/12M/10B | NC |
| B285M | B285M DT TRASD. BRONZO CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 0 DT SONDE TR BR CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 12 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175M | B175M 20 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM NEED AI-33-1424-01 NECESSAIRE | NC |
| B175H | B175H 0 DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | 1 748,26 € Con IVA (22%) |
| B175H | B175H 20DT SONDE TR BR CHIRP 130-210KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| TM185HW | TM185HW DT SONDE TA PLAS CHIRP 150-250 khz /12M/10B - Sustituido por AI-41-915-1-01 | NC |
| B285HW | TRASDUTT B285HW 150-250kHz 1kW CHIRP BRONZO PASSANTE ECO/TEMP 0 GRADI CON FAIRING | 2 350,94 € Con IVA (22%) |
| B175HW | B175HW 0 DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW | B175HW 12DT SONDE TR BR CHIRP 150-250KHZ/1KW/9M/MM AI-33-1424-01 NECESSAIRE | NC |
| B175HW/20 | B175HW 20 DT SONDE TR BR CHIRP 150-250KHZ/1KW/12M/10B GP1X71F | NC |
| AI-33-1423-01 | CABLE M&M CHIRP FREQUENCE L 1 M 12MM 10F | 128,10 € Con IVA (22%) |
| AI-33-1424-01 | CABLE M&M CHIRP FREQUENCE M/H 1 M 12MM 10F 1M 12M&M 10F | 128,10 € Con IVA (22%) |
| RO-00525 | CARTE SD/MICROSD 256GB CARTE 256GB PRECHARGEE | NC |
| MU TZT3 | MU TZT3 Manuel d'utilisation Francais | NC |
| SS904 | TRASDUTTORE CHIRP SIDE SCAN 230kHz 150W 12M CABLE 12-PIN W/TEMP SENSOR THRU-HULL | 1 281,00 € Con IVA (22%) |
| TM904 | Side-Scan Transducer for NavNet TZtouch3 | 1 085,80 € Con IVA (22%) |
| PR904 | Paired Thru-Hull CHIRP Side-Scan Transducers for NavNet TZtouch3 | 2 671,80 € Con IVA (22%) |
| RO-GS308PP | GS308PP HUB POE 8 PORTS RJ45 SWITCH ETHERNET Métal Gigabit (10/100/1000) | NC |
| RO-NGX-1-USB | INTERFACE BI-DIRECTIONNELLE NMEA2000 > PC ou NMEA 0183 | NC |
| 00003849800 | TZT16F-E MULTI FUNCTION DISPLAY CHINA | NC |
| DRS4DL+ | 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. | 2 379,00 € Con IVA (22%) |
| IMD03456000 | DRS4D-NXT RADAR SENSOR RADOME DOPPLER SOLID STATE SANS CABLE - Sustituido por IMD03456001 | NC |
| DRS6A-NXT | 25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. | 7 307,80 € Con IVA (22%) |
| DRS6A-XCLASS | 6kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5, 4 or 6 antenna and, cable. - Sustituido por IMD034550BA | NC |
| DRS12A-XCLASS | 12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4 or 6 antenna and, cable. | 7 185,80 € Con IVA (22%) |
| DRS25A-XCLASS | 25kW, 96 n.m., UHD Digital Radar for NavNet TZtouch , TZtouch2, and TZtouch3, less 3.5', 4 or 6 antenna and, cable. | 7 869,00 € Con IVA (22%) |
| DFF3D | Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch | 2 671,80 € Con IVA (22%) |
| GP330B/NMEA2000 | GP330B ANT.ACTIVE GPS NMEA2000 M/ 6M CONNECT.9B | 585,60 € Con IVA (22%) |
| PG-500 | PG500 FURUNO HEADING SENSOR 12-24V/CABLE 10M/AD10&NMEA0183 - Sustituido por IMD016650AB | NC |
| PG700 | PG700 HEADING SENSOR FURUNO | 719,80 € Con IVA (22%) |
| FAX30 | FAX30 FURUNO NAVNET/PC 12-24VCC/5M - Sustituido por IMD02788001 | NC |
| 200WX | 200WX STATION METEO VIT/VENT NMEA2000/GPS/WAAS//COMPAS/BARO - Sustituido por AI-44-854-1-03 | NC |
| FI70 | FI70 /MIC/A INDIC. COUL.4''1 FI70 NMEA2000 NNEA2000 6M cable | 597,80 € Con IVA (22%) |
| NAVPILOT300 | NAVPILOT300 AUTOPILOT LESS RRU WITH GCU-001 - Sustituido por IMD03230003 | NC |
| NAVPILOT711C | NAVPILOT711C/LESS RRU FAP-7011C+FAP-7002 SANS FAP6112 - Sustituido por IMD034240BB | NC |
| SC70 | SC70/MIC COMPAS SATELLIT. 2 AXES 0.4 12-24V/ SANS CABLE /NMEA2000 - Sustituido por IMD0345200D | NC |
| SC130 | SC130/MIC COMPAS SAT. 12/24V/ANT.3AXES SANS CABLE ANTENNE - Sustituido por IMD0347000D | NC |
| FA70 | FA70 AIS TRANSPONDER CLASS B W/GPAC01 SOTDMA GPA-C01 comes with 10m CBL | 1 207,80 € Con IVA (22%) |
| 00019709410 | FRU-60V-FU-7.5A FUSE 19S113890 | 18,84 € Con IVA (22%) |
| 00139088000 | 19P1089(LF) SDXC PRINTED CIRCUIT BOARD CHINA TZTL12/15 | 245,61 € Con IVA (22%) |
| 00156038000 | FRU-F12F12-050C CABLE ASSEMBLY 02S101320 | 104,92 € Con IVA (22%) |
| 00156041000 | FRU-F7F7-050C CABLE ASSEMBLY 02S101310 | 69,94 € Con IVA (22%) |
| 00157967000 | 02P6414(LF) MAIN PRINTED CIRCUIT BOARD DI-FFAMP | 1 662,48 € Con IVA (22%) |
| 00157968000 | 02P6415(LF) FIL PRINTED CIRCUIT BOARD DI-FFAMP | 272,24 € Con IVA (22%) |
| 00158056000 | 19P1103(LF) PWR PRINTED CIRCUIT BOARD TZT12F/16F/19F - Sustituido por 00161799000 | 1 087,47 € Con IVA (22%) |
| 00158082000 | TZT16F PNL/19P1107A LCD ASSEMBLY | 3 654,50 € Con IVA (22%) |
| 00160215000 | 19P1101(LF) MAIN PRINTED CIRCUIT BOARD TZT16F 19E61150 - Sustituido por 00161811000 | 2 683,38 € Con IVA (22%) |
| 00161799000 | 19P1103(LF) PWR PRINTED CIRCUIT BOARD CHINA TZTXXF | 1 087,47 € Con IVA (22%) |
| 00161811000 | 19P1101(LF) MAIN PRINTED CIRCUIT BOARD - Sustituido por 00165057000 | 2 683,38 € Con IVA (22%) |
| 00161941000 | CP19-02501 INSTALLATION MATERIALS CHINA TZT16/19F | 122,40 € Con IVA (22%) |
